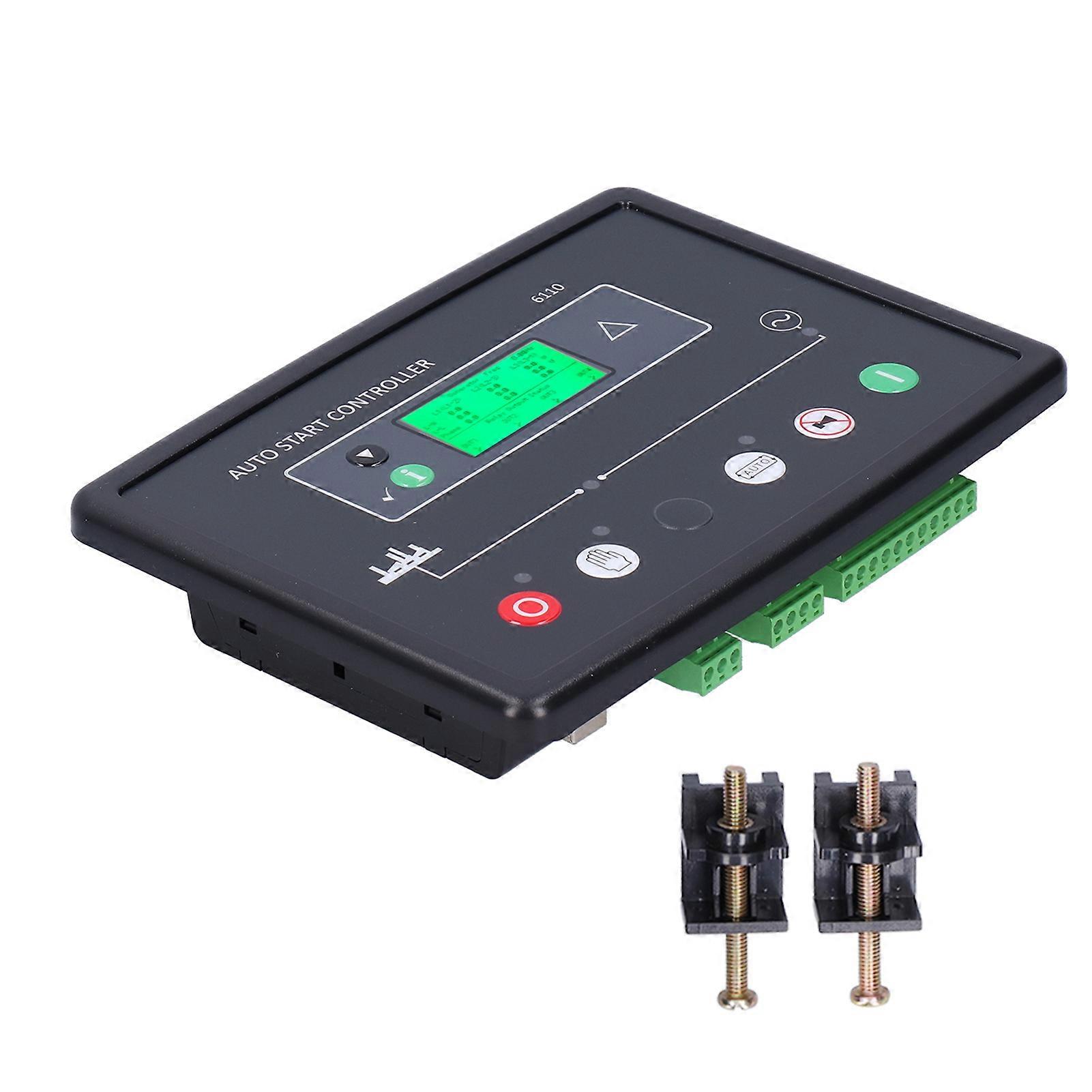

1、As a self-starting control module for single unit use, the generator controller is designed to work with electronic and non-electronic engines. 2、This module includes six inputs, three analog inputs and six outputs. And two of the outputs can be configured in the magnetic probe version. 3、The module can be configured through front panel programming or using DSE's configuration suite computer software. 4、The Protective Solid State output will effectively protect the generator in remote or empty load, and when the battery is low. 5、This module includes a backlit Liquid Crystal Display, which clearly shows the status of the engine at any time. 6、The generator controller will monitor frequency, voltage, current, oil pressure, etc. The clock will help timekeeping as well. 7、Moreover, the panel has user-friendly design, the button layout allows for easier operation and clear viewing. Item Type: Generator Controller Module Model: DSE6110 Maximum Working Current: 100mA at 12V, 105mA at 24V Maximum Standby Current: 60mA at 12V, 55mA at 24V Maximum Sleep Current: 40mA at 12V, 35mA at 24V Charging Failure / Excitation Range: 0V-35V Frequency Range: 3.5Hz-75Hz Product Size: Approx. 216 x 158 x 43mm / 8.5 x 6.2 x 1.7in Hole Size: Approx. 184 x 137mm / 7.2 x 5.4in Storage Temperature: -40℃~+85℃ Working Temperature: -30℃-+70℃ Main Features and New Functions: • Clock • Scheduler Standard function: • CAN and Magnetic Probe Version • Personal Computer and Front Panel Configuration • 6 Digital Inputs / 3 Analog Inputs • 6 Outputs (2 can be configured with magnetic probe version, 6 can be configured with CANbus version) • Incident Record (10 items) • Configurable Timer • When a fault condition is detected, it will automatically shut down or warn • Remote Load or No-load Start • Engine Warm-up • Advanced Metering Function • Engine Hour Counter • Red Indicator Light to Warn or Shut Down • Backlit Liquid Crystal Display • Protective Solid State Output (PSS) Advantages • User-friendly Settings and Button Layout • Simultaneous Monitoring of Multiple Engine Parameters • Modules can be configured to meet individual needs • Can specify a wide range of engines • Use DSE's PC suite software configuration to simplify programming • When a gasket is provided, it provides an advanced IP65/NEMA 12 waterproof protection rating • Free Computer Software • Hour counter provides accurate monitoring and maintenance cycle information 1 x Generator Control Module 2 x Install Screw 1 x User Manual
