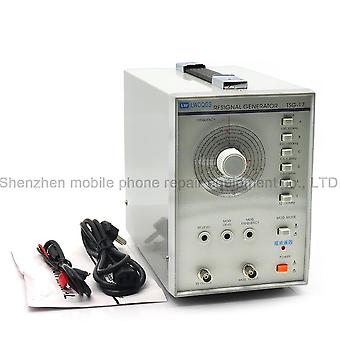

TSG-17 High Frequency Signal Generator 100KHZ-150MHZ Signal Frequency Radio Frequency High Precision Pulse Generator   Features: Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation. Signal frequency: 100 kHz to 150MHz, 3 harmonic up to 450MHz. Output wave form: sine and amplitude modulation wave. RF/AM output, max, intensity≥10VP-P. External modulation signal can be set between 50Hz to 20 KHz. Specifications: Model: TSG-17 Voltage:110V/220V(Optional) Plug type: EU plug, AU plug, US plug(Optional) Frequency ranges: A: 100 KHz to 300 KHz B: 300 KHz to 1MHz C: 1MHz to 3.2MHz D: 3MHz to 10MHz E: 10MHz to 35MHz F: 32MHz to 150MHz Frequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz) Frequency accuracy: Over±5% Output waveform: RF/AM signal waveform Output impedance: 600Ω Radio frequency output: Over 100Mv rms (when frequency ≤35MHz) Level control: 1mV to100mV External modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable. Normal operation: 50Hz to 20 KHz for any setting. Temperature/Humidity: 10℃to 35℃/with 85%RH Power supply: 220V/110V+/-10%, 50Hz/60Hz Size: 29.5*14.5*19.8cm/11.6*5.7*7.8in Weight: Approx.2874g/101.4oz Package list: 1 x Signal Generator 1 x BNC connection cable 1x plug cable 1 x manual
